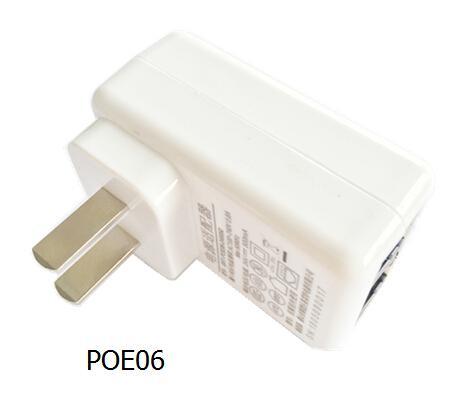

POE06(12W)

The PoE06 shell single-port P0E power supply Ethernet power device is suitable for indoor use and can operate normally with an input voltage of 100VAC to 240VAC. This power supply connects to network terminal devices via a super five-category cable, featuring one Ethernet data port and one output port that combines data and power. This device can provide PoE power applications that comply with PoE power supply standards for a single Ethernet device, such as routers, switches, wireless APs, VoIP phones, industrial network terminals, network cameras, etc. It offers efficient engineering solutions for places where power cannot be provided remotely or where using Ethernet cables for power supply enhances system reliability and simplifies device installation.

POE15(12-24W)

The PoE15 shell single-port P0E power supply Ethernet power device is suitable for indoor use and can operate normally with an input voltage of 100VAC to 240VAC. This power supply connects to network terminal devices via a super 5 category cable, featuring one Ethernet data port and one output port that combines data and power. This device can provide PoE power applications that meet PoE power supply standards for a single Ethernet device, such as routers, switches, wireless APs, VoIP phones, industrial network terminals, and network cameras. It offers an efficient engineering solution for places where power cannot be provided remotely or where using Ethernet cables for power supply enhances system reliability and simplifies device installation.

POE08(12-24W)

PoE Power Supply, PoE Power Module, GRT-POE08 Model: POE08 (48V/20W) PoE Power Mode: Strong Supply Type = Power on immediately; does not detect the powered end before supplying power. PoE IEEE802.3af/at Protocol: Non-standard PoE Pins: 4,5(+), 7,8(-) Data Pins: 1,2-TX; 3,6-RX Port Rate: 10/100Mbps LED Indicators: Power, PoE Status Network Medium: 100BASE-TX: Category 5 and above unshielded twisted pair, EIA/TIA-568 standard Output Power: 48V/20W; Instant Maximum: 24W The PoE08 shell single-port PoE power supply device is an Ethernet power supply device suitable for indoor use, operating normally at an input voltage of 100VAC to 240VAC. This power supply connects to network terminal devices via a super Category 5 cable, featuring one Ethernet data port and one output port that combines data and power. This device can provide PoE power supply applications that meet PoE power supply standards for Ethernet devices such as routers, switches, wireless APs, VoIP phones, industrial network terminals, and network cameras. It offers efficient engineering solutions for places where power cannot be provided remotely or where using Ethernet cables for power supply enhances system reliability and simplifies device installation.   Main Features   The power supply has functions such as input over/under voltage, output over voltage, and overcurrent short circuit protection for each output OCP = overcurrent protection Overcurrent protection OLP = Overload protection Overload protection circuit OVP = Overvoltage protection Overvoltage protection System Reliability: MTBF > 8760 hours Conducted interference (CE) and radiated interference (RE), compliant with EN60950, FCC CLASS B standards   Functional Features * Can provide up to 48V/20W of POE power * Breaks traditional methods, allowing not only data transmission but also power transmission through Ethernet lines * The power supply has functions such as input over/under voltage, output over voltage, and overcurrent short circuit protection for each output * High safety design against power surges * Transmission distance can reach up to 100 meters * Easy and convenient installation, plug and play   Model PoE08120100 PoE08150100 PoE08180100 PoE   240050 PoE08240100 Ports 2 10/100M adaptive adjustment ports 2 10/100/1000M adaptive adjustment ports 1 port supports PoE function Network Medium 10BASE-T: Category 3, 4, 5 unshielded twisted pair 100BASE-TX: Category 5 and above unshielded twisted pair 1000BASE-TX: Category 5 and above unshielded twisted pair LED Indicators Power, PoE Status Power, PoE Status Power, PoE Status Power, PoE Status Power, PoE Status Size (L*W*H) 83mm*47mm*31mm Operating Environment Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Input Power AC100V-240V ~ 50-60HZ Output Power 12W 15W 18W 20W 20W Instant Maximum 15W 18W 20W 24W 24W POE Protocol NON-802.3 NON-802.3 NON-802.3 NON-802.3 NON-802.3 POE Pins 4,5+/7,8-Midsapn Midspan 4,5(+)/7,8(-) Midspan Customizable 1,2(+),3,6(-) Basic Function Compatibility with IEEE802.3at/af standard powered devices (PD) Port Power Priority Function (48V can have detection function) Forwarding Rate 10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port 1000BASE-TX: 148800pps/port
