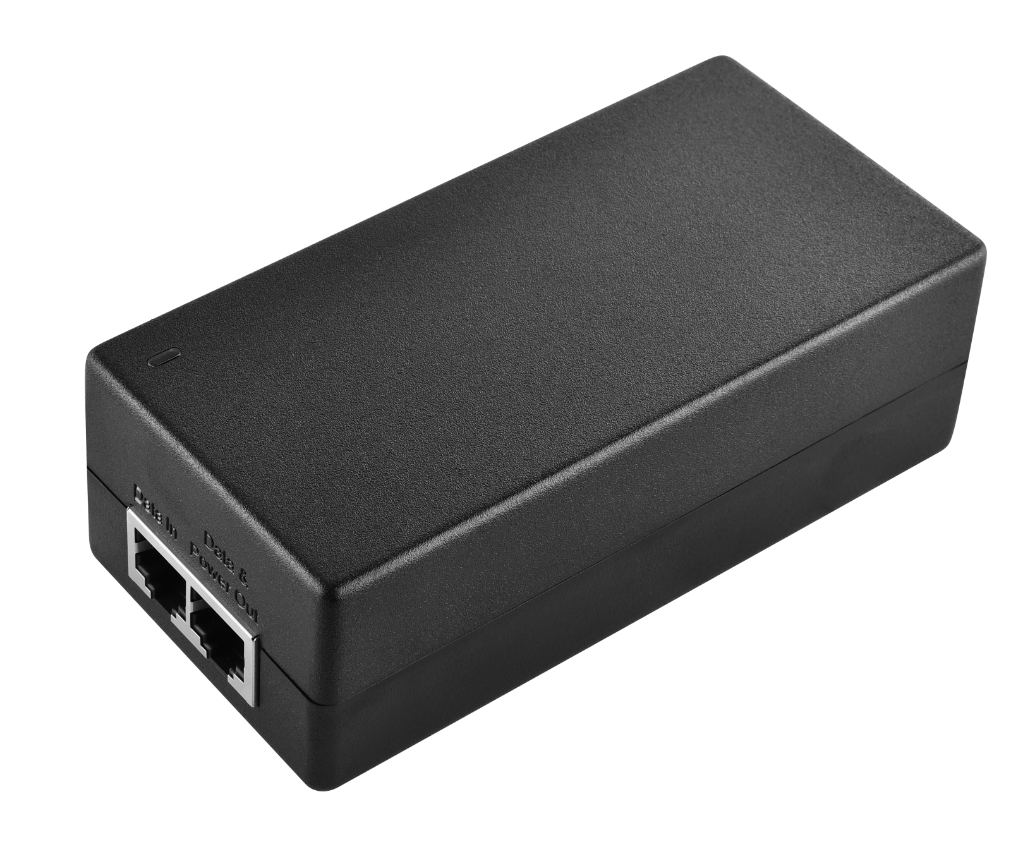

POE30(MAX60W)

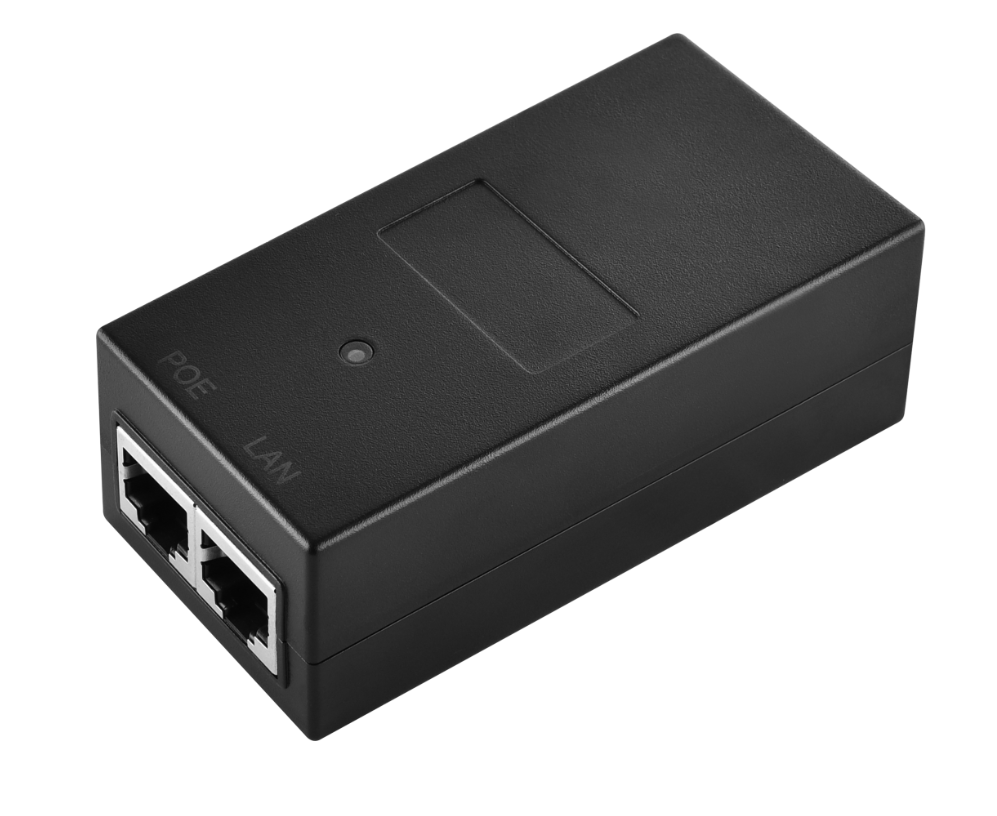

POE20(MAX24W)

GRT-FLQ

Features Simple plug-and-play, easy installation of PoE devices without software and without the need for a power outlet, reducing installation and network device costs. Provides power to PoE devices such as access points, IP cameras, and IP phones through existing network cabling. Lightweight and compact, compliant with the 802.3af standard, with a PoE output power of 0.5A at 48V. Gigabit connection for 10/100/1000T Ethernet Power over Ethernet (PoE) injector can provide power up to 100 meters (328 feet) while connecting your devices at gigabit speeds, all within a compact device. Technical Specifications Port P+ Data Port (Output) Compliant with IEEE802.3af standard, supports half/full duplex operation, compliant with IEEE802.3 standard, compliant with IEEE802.3u standard, compliant with IEEE802.3ab standard 10/100/1000BASE-T port Data Port (Middle) supports half/full duplex operation, compliant with IEEE802.3 standard, compliant with IEEE802.3u standard, compliant with IEEE802.3ab standard 10/100/1000BASE-T port Physical Size (LxWxH) 73x54x24 mm Weight 65g Power Consumption: Maximum 24 watts output: 0.5A at 48V (RJ45 INPUT, output: 12V or 24V/24 WATTS) Temperature Operating Temperature: 0 to 50°C (32 to 122°F) Storage: -20 to 70°C (-4 to 158°F) Humidity Operating: 10% to 90% non-condensing Storage: 5% to 90% non-condensing Certification CE

Lightning protection POE (POE70L)

GRT-POE30L (Lightning Protection POE)

GRT-XHCQ (XHCQ)

1. Input Characteristics (INPUTCHARACTERISTICS):   1.1 Input Voltage (InputVoltage):    Nominal Voltage (NominalVoltage): 36-56VDC   1.2 Input Current (InputCurrent): 0-1A   1.3 Input Data Transmission: 1/2&3/6   1.4 Transmission Rate: 10/100Mbps   1.5 Input current per port does not exceed 0.5A; when it exceeds 0.75A, port protection activates, and it can recover automatically when disconnected.  2. Output Characteristics (OUTPUTCHARACTERISTICS):   2.1 Output Voltage (InputVoltage): 36-56VDC   2.2 Output Current (InputCurrent): 1.0A   2.3 Output Data Transmission: 1/2&3/6, 4/5&7/8   2.4 Output Transmission Rate: 10/100Mbps   2.5 Output Power Transmission: 4/5 is positive, 7/8 is negative This model can be used for gigabit products.

GRT-HCQ

1. Input Characteristics (INPUTCHARACTERISTICS):   1.1 Input Voltage (InputVoltage):    Nominal Voltage (NominalVoltage): 36-56VDC   1.2 Input Current (InputCurrent): 0-1A   1.3 Input Data Transmission: 1/2&3/6   1.4 Transmission Rate: 10/100Mbps   1.5 Input current per port does not exceed 0.5A; when it exceeds 0.75A, port protection activates, and it can recover automatically when disconnected.  2. Output Characteristics (OUTPUTCHARACTERISTICS):   2.1 Output Voltage (InputVoltage): 36-56VDC   2.2 Output Current (InputCurrent): 1.0A   2.3 Output Data Transmission: 1/2&3/6, 4/5&7/8   2.4 Output Transmission Rate: 10/100Mbps   2.5 Output Transmission Power: 4/5 is positive, 7/8 is negative This model can be used for gigabit products.

GRT-FLQ1000 (POE Network Cable Lightning Protector FLQ1000)

GRT-FLQ100 (POE Network Cable Lightning Protector FL100)

1. Description:  The RJ45 series network signal surge protector is designed according to standards such as IEC61643-21 and IEC6100-4-5. It uses a multi-pole protection circuit and selects the latest high-speed surge protection devices, featuring fast response speed, low output residual voltage, and low capacitance design, providing superior transmission performance.  The interface adopts the standard RJ45 interface, suitable for network devices powered by network cables, transmitting DC power while transmitting data, such as lightning protection for wireless APs, Switches, HUBs, and Routers, suppressing high-voltage pulses on the line, and protecting backend devices from damage caused by lightning strikes and industrial surges.  This product uses a metal shell with good sealing, has dust and corrosion resistance, and is connected in series, installed between the protected device and the external line.   Model and Definition  RJ45–E1000/-8–C–M  RJ45: Interface type, RJ45 series  E100/E1000: 100M/1000M Ethernet  8: Protection line: 8-line protection  C: Lightning protection level: C: strong protection  M: indicates multi-channel

GRT-FL40A (Built-in Lightning Protection Board)

1. Description:  The RJ45 series network signal surge protector is designed according to standards such as IEC61643-21 and IEC6100-4-5. It uses a multi-pole protection circuit and selects the latest high-speed surge protection devices, featuring fast response speed, low output residual voltage, and low capacitance design, providing superior transmission performance.  The interface adopts the standard RJ45 interface, suitable for network devices powered by network cables, transmitting DC power while transmitting data, such as lightning protection for wireless APs, switches, hubs, and routers, suppressing high-voltage pulses on the line, and protecting backend devices from damage caused by lightning strikes and industrial surges.  This product uses a metal shell with good sealing, has dust and corrosion resistance, and is connected in series, installed between the protected device and the external line.  Model and Definition  RJ45–E1000/-8–C–M  RJ45: Interface type, RJ45 series  E100/E1000: 100M/1000M Ethernet  8: Protection line: 8-line protection  C: Lightning protection level: C: strong protection  M: indicates multi-channel

POE06(12W)

The PoE06 shell single-port P0E power supply Ethernet power device is suitable for indoor use and can operate normally with an input voltage of 100VAC to 240VAC. This power supply connects to network terminal devices via a super five-category cable, featuring one Ethernet data port and one output port that combines data and power. This device can provide PoE power applications that comply with PoE power supply standards for a single Ethernet device, such as routers, switches, wireless APs, VoIP phones, industrial network terminals, network cameras, etc. It offers efficient engineering solutions for places where power cannot be provided remotely or where using Ethernet cables for power supply enhances system reliability and simplifies device installation.

POE08(12-24W)

PoE Power Supply, PoE Power Module, GRT-POE08 Model: POE08 (48V/20W) PoE Power Mode: Strong Supply Type = Power on immediately; does not detect the powered end before supplying power. PoE IEEE802.3af/at Protocol: Non-standard PoE Pins: 4,5(+), 7,8(-) Data Pins: 1,2-TX; 3,6-RX Port Rate: 10/100Mbps LED Indicators: Power, PoE Status Network Medium: 100BASE-TX: Category 5 and above unshielded twisted pair, EIA/TIA-568 standard Output Power: 48V/20W; Instant Maximum: 24W The PoE08 shell single-port PoE power supply device is an Ethernet power supply device suitable for indoor use, operating normally at an input voltage of 100VAC to 240VAC. This power supply connects to network terminal devices via a super Category 5 cable, featuring one Ethernet data port and one output port that combines data and power. This device can provide PoE power supply applications that meet PoE power supply standards for Ethernet devices such as routers, switches, wireless APs, VoIP phones, industrial network terminals, and network cameras. It offers efficient engineering solutions for places where power cannot be provided remotely or where using Ethernet cables for power supply enhances system reliability and simplifies device installation.   Main Features   The power supply has functions such as input over/under voltage, output over voltage, and overcurrent short circuit protection for each output OCP = overcurrent protection Overcurrent protection OLP = Overload protection Overload protection circuit OVP = Overvoltage protection Overvoltage protection System Reliability: MTBF > 8760 hours Conducted interference (CE) and radiated interference (RE), compliant with EN60950, FCC CLASS B standards   Functional Features * Can provide up to 48V/20W of POE power * Breaks traditional methods, allowing not only data transmission but also power transmission through Ethernet lines * The power supply has functions such as input over/under voltage, output over voltage, and overcurrent short circuit protection for each output * High safety design against power surges * Transmission distance can reach up to 100 meters * Easy and convenient installation, plug and play   Model PoE08120100 PoE08150100 PoE08180100 PoE   240050 PoE08240100 Ports 2 10/100M adaptive adjustment ports 2 10/100/1000M adaptive adjustment ports 1 port supports PoE function Network Medium 10BASE-T: Category 3, 4, 5 unshielded twisted pair 100BASE-TX: Category 5 and above unshielded twisted pair 1000BASE-TX: Category 5 and above unshielded twisted pair LED Indicators Power, PoE Status Power, PoE Status Power, PoE Status Power, PoE Status Power, PoE Status Size (L*W*H) 83mm*47mm*31mm Operating Environment Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Input Power AC100V-240V ~ 50-60HZ Output Power 12W 15W 18W 20W 20W Instant Maximum 15W 18W 20W 24W 24W POE Protocol NON-802.3 NON-802.3 NON-802.3 NON-802.3 NON-802.3 POE Pins 4,5+/7,8-Midsapn Midspan 4,5(+)/7,8(-) Midspan Customizable 1,2(+),3,6(-) Basic Function Compatibility with IEEE802.3at/af standard powered devices (PD) Port Power Priority Function (48V can have detection function) Forwarding Rate 10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port 1000BASE-TX: 148800pps/port
