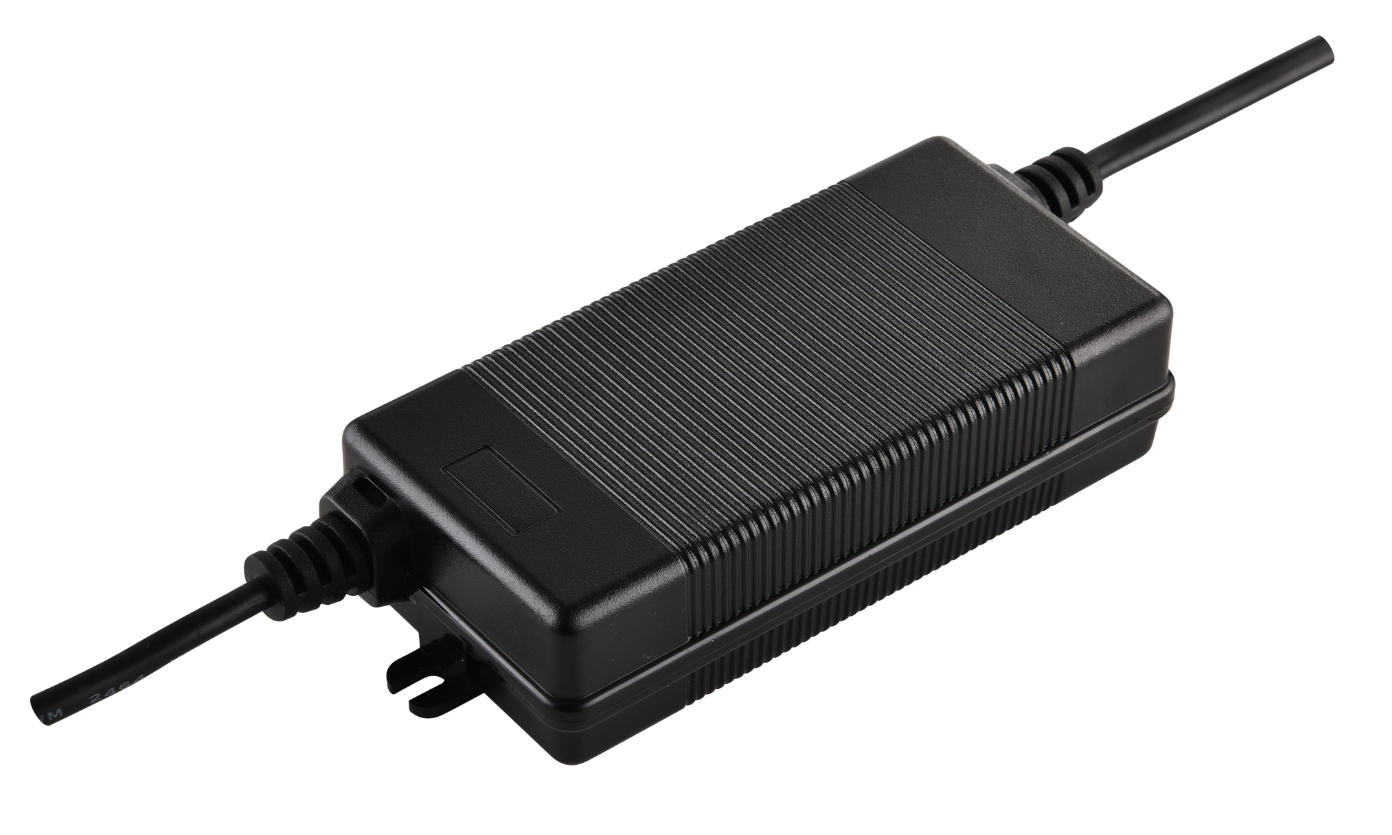

GRT-G150WPF (150W with PFC)

Product Features

Six major features of the product:Japanese and Taiwanese parts,Complete certification, 3-year warranty, annual repair rate less than 0.02%, Japanese and Taiwanese parts, independently patented appearance

Product concept: Technology integrated with ideals

Basic information of 150W industrial power supply

Technical data

Input voltage 100-240VAC 50/60Hz
Input current 0.1-2.5A
Output voltage range ±5%
No-load power consumption 3W
Energy efficiency meets Level 6 Energy Star

Reliability
At25℃ambient temperature, maximum load average fault-free time80,000hours(According to MIL-HDBK-217standard)

Size
External dimensions 135.0mm(Length) ;62.0mm(Width) ;35.0mm(Height)

Environmental requirements
Operating temperature -10℃-60℃
Storage temperature-20℃-80℃

Safety standards
UL/CUL/FCC/CCC/CB/GS/CE/T-mark(TUV)/PSE/KETI/RoHS

Output data

Model	Voltage (V)	Current (A)	Ripple (mV)
GRT-GXXXYY-VV ("XXX represents power, Y represents PFC, Y represents fan, VV represents current")	5V	0.1-30A	Soil 10%
	12V	0.1-12.5A
	24V	0.1-6.25A
	48V	0.1-3.13A
